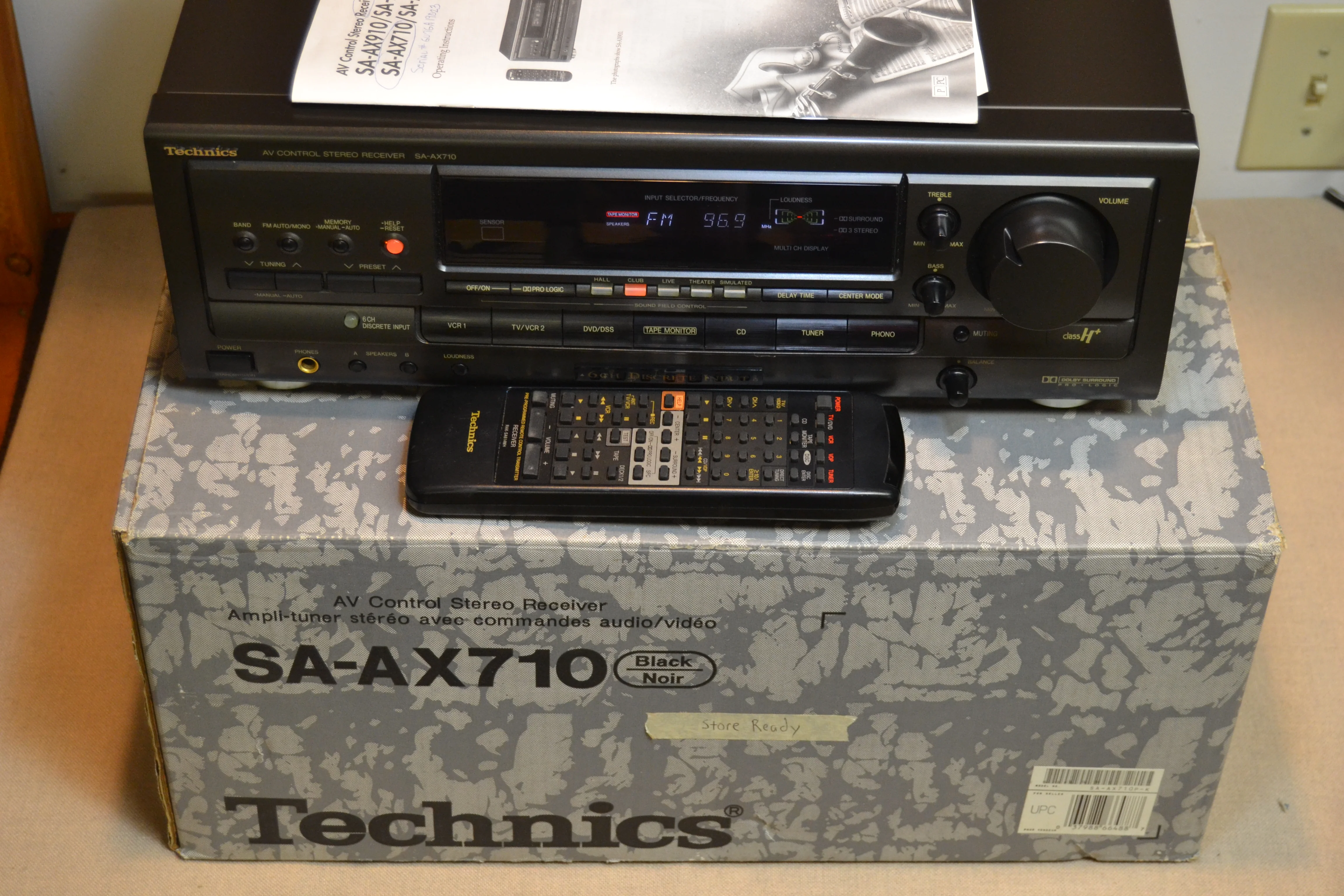

Technics SA-AX710 Stereo Receiver * Manual * Remote * Box
Technics SA-AX710
AV Control Stereo Receiver (1997-98)
Specifications
Tuning range: FM, MW
Power output: 65 watts per channel into 8ā¦ (stereo)
Surround output: 60W (front), 60W (center), 60W (rear)
Frequency response: 10Hz to 40kHz
Total harmonic distortion: 0.05%
Damping factor: 30
Input sensitivity: 3mV (MM), 200mV (line)
Signal to noise ratio: 70dB (MM), 75dB (line)
Channel separation: 55dB (line)
Output: 200mV (line)
Speaker load impedance: 4ā¦ to 16ā¦
Video Connections: composite
Dimensions: 430 x 158 x 312mm
Weight: 9.6kg
Finish: black
Accessories: RAK-SA750WHP remote control
Year: 1997
Technics SA-AX710
AV Control Stereo Receiver (1997-98)
Specifications
Tuning range: FM, MW
Power output: 65 watts per channel into 8ā¦ (stereo)
Surround output: 60W (front), 60W (center), 60W (rear)
Frequency response: 10Hz to 40kHz
Total harmonic distortion: 0.05%
Damping factor: 30
Input sensitivity: 3mV (MM), 200mV (line)
Signal to noise ratio: 70dB (MM), 75dB (line)
Channel separation: 55dB (line)
Output: 200mV (line)
Speaker load impedance: 4ā¦ to 16ā¦
Video Connections: composite
Dimensions: 430 x 158 x 312mm
Weight: 9.6kg
Finish: black
Accessories: RAK-SA750WHP remote control
Year: 1997
Description
Technics SA-AX710
AV Control Stereo Receiver (1997-98)
Specifications
Tuning range: FM, MW
Power output: 65 watts per channel into 8ā¦ (stereo)
Surround output: 60W (front), 60W (center), 60W (rear)
Frequency response: 10Hz to 40kHz
Total harmonic distortion: 0.05%
Damping factor: 30
Input sensitivity: 3mV (MM), 200mV (line)
Signal to noise ratio: 70dB (MM), 75dB (line)
Channel separation: 55dB (line)
Output: 200mV (line)
Speaker load impedance: 4ā¦ to 16ā¦
Video Connections: composite
Dimensions: 430 x 158 x 312mm
Weight: 9.6kg
Finish: black
Accessories: RAK-SA750WHP remote control
Year: 1997
