Sony TA-1010

Stereo Integrated Amplifier (1971-72)

Description

The Sony TA-1010 stereo amplifier provides a powerful and reliable HiFi centre piece at moderate cost.

This solid-state unit employs high quality transistors for trouble free, reliable operation, and a rated output of 15 watts per channel ensures smooth amplification over a wide frequency range.

A full selection of input/output facilities, including headphone output, provide complete freedom to create the sound system of your choice.

Model TA-1010 - the perfect choice for discerning listeners.

Specifications

Power output: 15 watts per channel into 8Ω (stereo)

Frequency response: 20Hz to 60kHz

Total harmonic distortion: 0.5%

Input sensitivity: 1.2mV (MM), 250mV (line)

Signal to noise ratio: 70dB (MM), 90dB (line)

Output: 250mV (line), 36mV (DIN)

Dimensions: 420 x 123 x 246.5mm

Weight: 5.4kg

---------------------------------------------------------

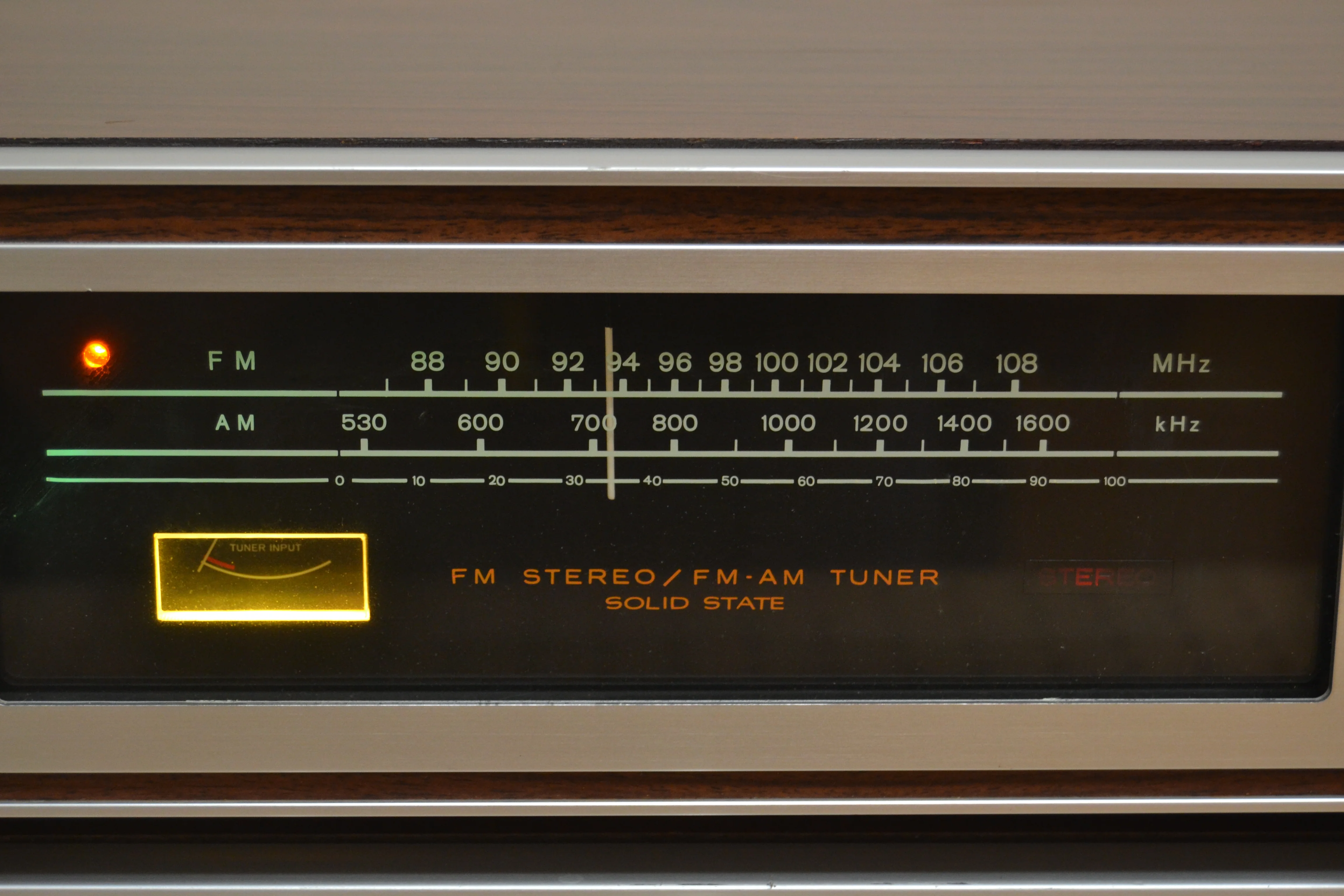

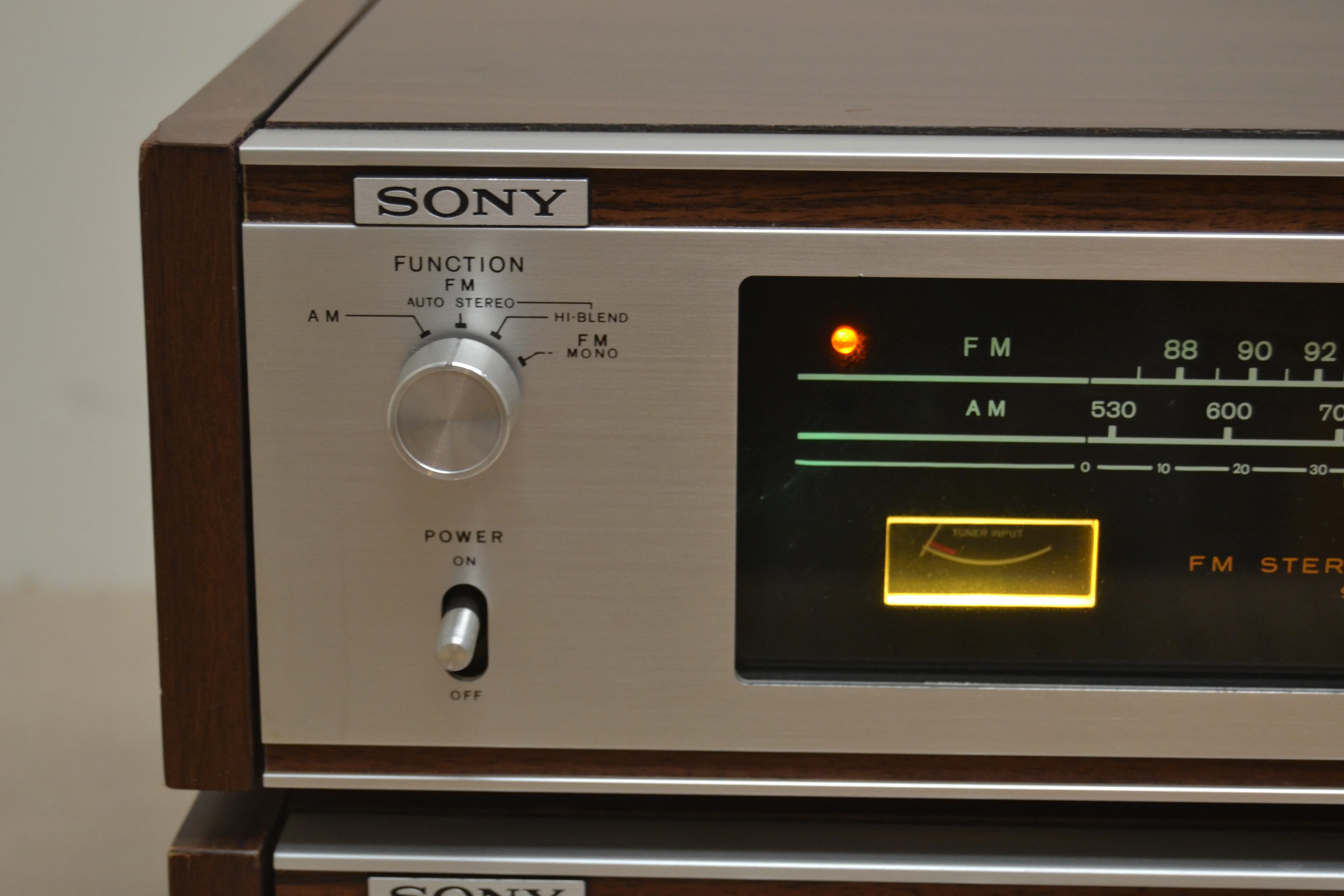

Sony ST-5600

Stereo AM/FM Tuner (1971)

Specifications

Type: Mono/Stereo Tuner

Tuning Bands: FM, MW, LW

Tuning Scale: Analogue

FM Tuning Range: 87.5 to 108 MHz

MW Tuning Range: 530 to 1605 kHz

LW Tuning Range: 150 to 350 kHz

Sensitivity: 1.4uV (FM), 20uV (MW), 200uV (LW)

Signal to Noise Ratio: 65dB (FM), 50dB (MW), 50dB (LW)

Distortion: 0.7% (FM), 0.8% (MW), 0.8% (LW)

Selectivity: 60dB (FM)

Frequency response: 30Hz to 15kHz (FM)

Output: 750mV

Semiconductors: 1 x FET, 19 x transistors, 18 x diodes

Dimensions: 16-5/8 x 4-7/8 x 10-1/2 inches

Weight: 9lbs

Accessories: dipole ribbon antenna
