Sansui G-5000 Stereo Receiver * 45W RMS * 1978

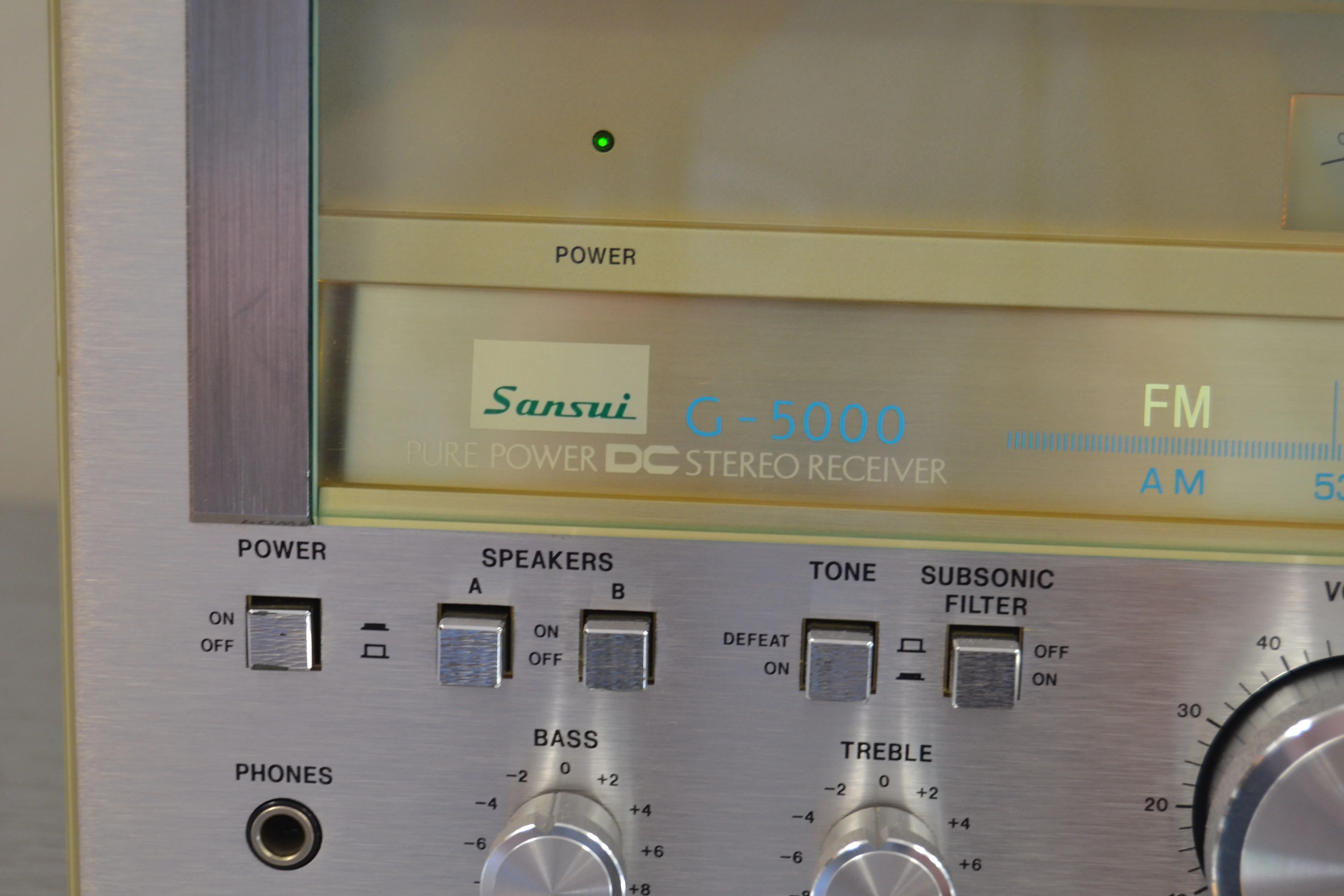

Sansui G-5000
Pure Power DC Stereo Receiver (1978-79)
Description
The Sansui G-5000 is a powerful AM/FM receiver with DC power amplifier section
Specifications
Tuning range: FM, MW
Power output: 45 watts per channel into 8Ω (stereo)
Frequency response: 5Hz to 50kHz
Total harmonic distortion: 0.03%
Damping factor: 30
Input sensitivity: 6mV (mic), 2.5mV (MM), 150mV (DIN), 150mV (line)
Signal to noise ratio: 78dB (MM), 95dB (line)
Channel separation: 55dB (MM), 65dB (line)
Output: 150mV (line), 43mV (DIN)
Speaker load impedance: 8Ω (minimum)
Dimensions: 464 x 181 x 408mm
Weight: 14kg
