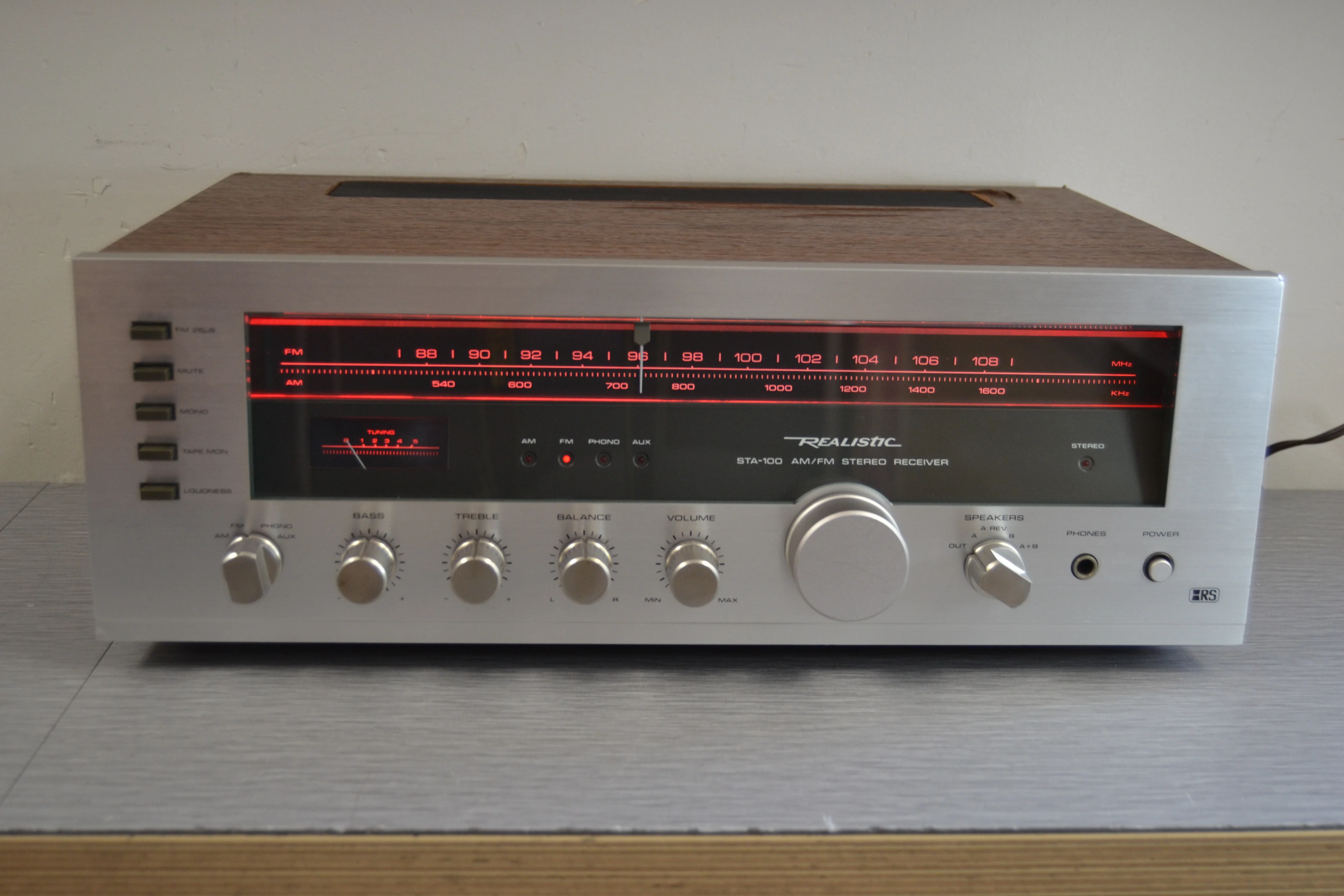

Realistic STA-100 Stereo Receiver * 1980 * 22W RMS
Realistic STA-100
AM/FM Stereo Receiver (1980)
Description
The STA-100 is human engineered for you with a combination of features for superb performance and ease of operation.
A wide, easy to read dial and illuminated FM signal strength meter make tuning easy. Bass and treble controls have detented rest stop. LED's indicate mode. FM muting silences the receiver while tuning between stations.
It has inputs for magnetic phono, aux, tape in, tape out and tape dubbing to a second deck.
The hot FM section pulls in even weaker stations, and advanced low noise solid state circuitry assures superior overall performance.
You also get tape monitoring facilities, and a loudness button for deep bass even at low volume levels.
Specifications
Tuning range: FM, MW
Power output: 22 watts per channel into 8Ω (stereo)
Frequency response: 20Hz to 20kHz
Total harmonic distortion: 0.1%
Input sensitivity: 2.2mV (MM), 160mV (line)
Signal to noise ratio: 65dB (MM), 75dB (line)
Output: 120mV (line), 3.3mV (DIN)
Dimensions: 17-3/8 x 6-1/4 x 11-5/8 inches
Finish: walnut vinyl veneer case
Year: 1980
Price: USD $279.95 (1980)
Realistic STA-100
AM/FM Stereo Receiver (1980)
Description
The STA-100 is human engineered for you with a combination of features for superb performance and ease of operation.
A wide, easy to read dial and illuminated FM signal strength meter make tuning easy. Bass and treble controls have detented rest stop. LED's indicate mode. FM muting silences the receiver while tuning between stations.
It has inputs for magnetic phono, aux, tape in, tape out and tape dubbing to a second deck.
The hot FM section pulls in even weaker stations, and advanced low noise solid state circuitry assures superior overall performance.
You also get tape monitoring facilities, and a loudness button for deep bass even at low volume levels.
Specifications
Tuning range: FM, MW
Power output: 22 watts per channel into 8Ω (stereo)
Frequency response: 20Hz to 20kHz
Total harmonic distortion: 0.1%
Input sensitivity: 2.2mV (MM), 160mV (line)
Signal to noise ratio: 65dB (MM), 75dB (line)
Output: 120mV (line), 3.3mV (DIN)
Dimensions: 17-3/8 x 6-1/4 x 11-5/8 inches
Finish: walnut vinyl veneer case
Year: 1980
Price: USD $279.95 (1980)
Original: $200.00
-70%$200.00
$60.00Description
Realistic STA-100
AM/FM Stereo Receiver (1980)
Description
The STA-100 is human engineered for you with a combination of features for superb performance and ease of operation.
A wide, easy to read dial and illuminated FM signal strength meter make tuning easy. Bass and treble controls have detented rest stop. LED's indicate mode. FM muting silences the receiver while tuning between stations.
It has inputs for magnetic phono, aux, tape in, tape out and tape dubbing to a second deck.
The hot FM section pulls in even weaker stations, and advanced low noise solid state circuitry assures superior overall performance.
You also get tape monitoring facilities, and a loudness button for deep bass even at low volume levels.
Specifications
Tuning range: FM, MW
Power output: 22 watts per channel into 8Ω (stereo)
Frequency response: 20Hz to 20kHz
Total harmonic distortion: 0.1%
Input sensitivity: 2.2mV (MM), 160mV (line)
Signal to noise ratio: 65dB (MM), 75dB (line)
Output: 120mV (line), 3.3mV (DIN)
Dimensions: 17-3/8 x 6-1/4 x 11-5/8 inches
Finish: walnut vinyl veneer case
Year: 1980
Price: USD $279.95 (1980)
