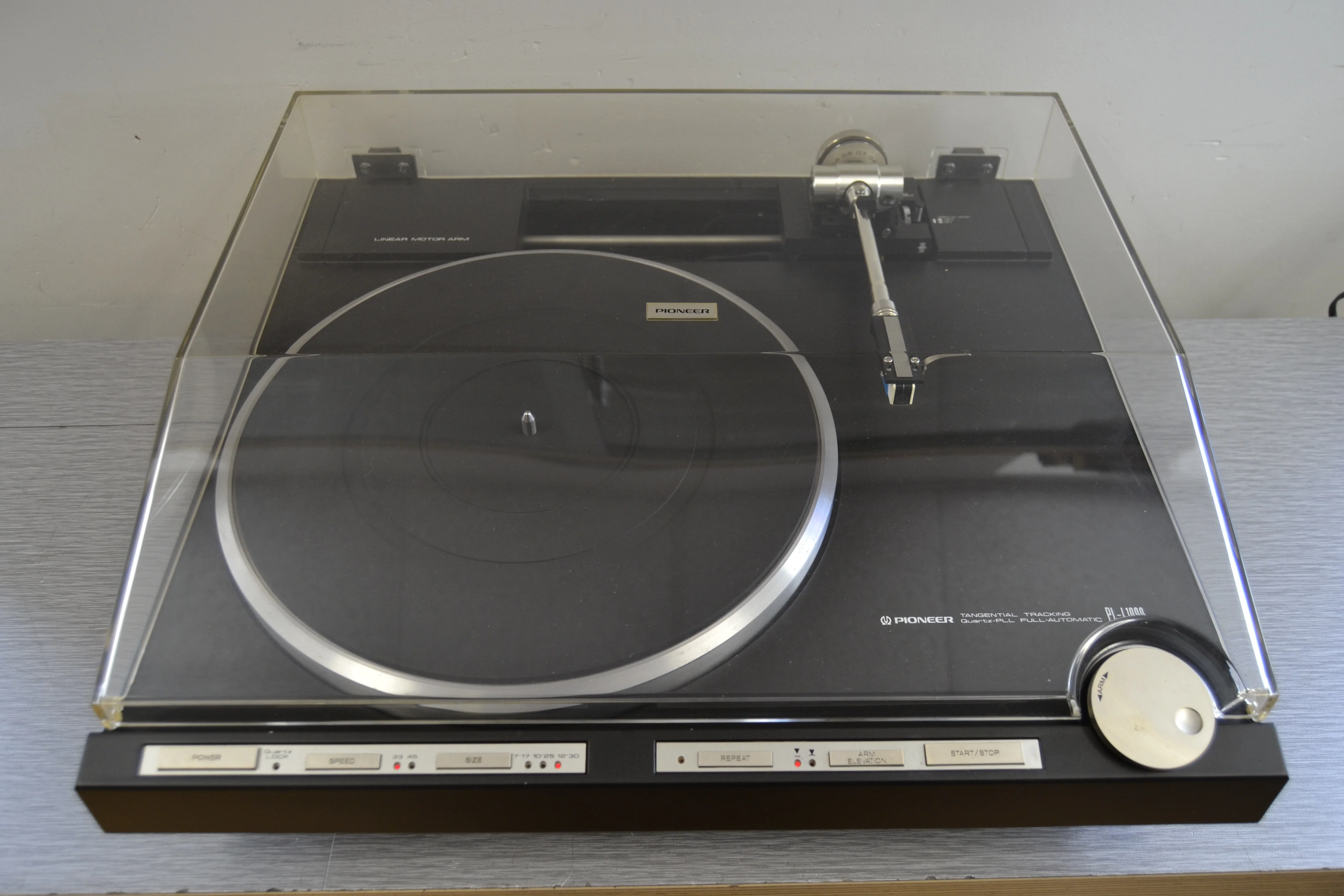

Pioneer PL-L1000

2-Speed Direct-Drive Turntable with Linear Tracking Arm

Description

The Pioneer PL-L1000 comes fitted with a linear tracking tonearm which traces the sound grooves on the record linearly in the same way that the master cutting machine cuts the grooves in the first place.

This means that the linear system is superior to conventional offset tonearms in many ways:

(1) There is no tracking error thus preventing the generation of harmonic distortion.

(2) In principle, there is no generation of inside force and so the crosstalk and intermodulation distortion are improved and the positioning of the sound image is stabilized.

(3) The tonearm pipe is linear for optimum lateral balance.

(4) It is possible to shorten the effective length of the tonearm and so this feature makes for a low equivalent mass and high rigidity.

This combination also reduces resonance in the parts and compound resonance.

Sub-functions of the PL-L1000 include auto lead-in, auto-return, auto cut, quick repeat, quick play, quick stop, stylus pressure direct readout, arm height adjustment, cueing device and free stop hinges.

Specifications

Drive system: direct drive

Motor: quartz PLL hall motor

Platter: 310mm aluminium alloy diecast

Speeds: 33 and 45rpm

Wow and flutter: less than 0.013% WRMS

Signal to noise ratio: more than 78dB

Tonearm: linear direct drive motor, static balance, linear tracking

Effective length: 190mm

Overhang: zero

Cartridge weight range: 4 to 24g

Headshell weight: 10.5g

Dimensions: 494 x 154 x 456mm

Weight: 12kg
