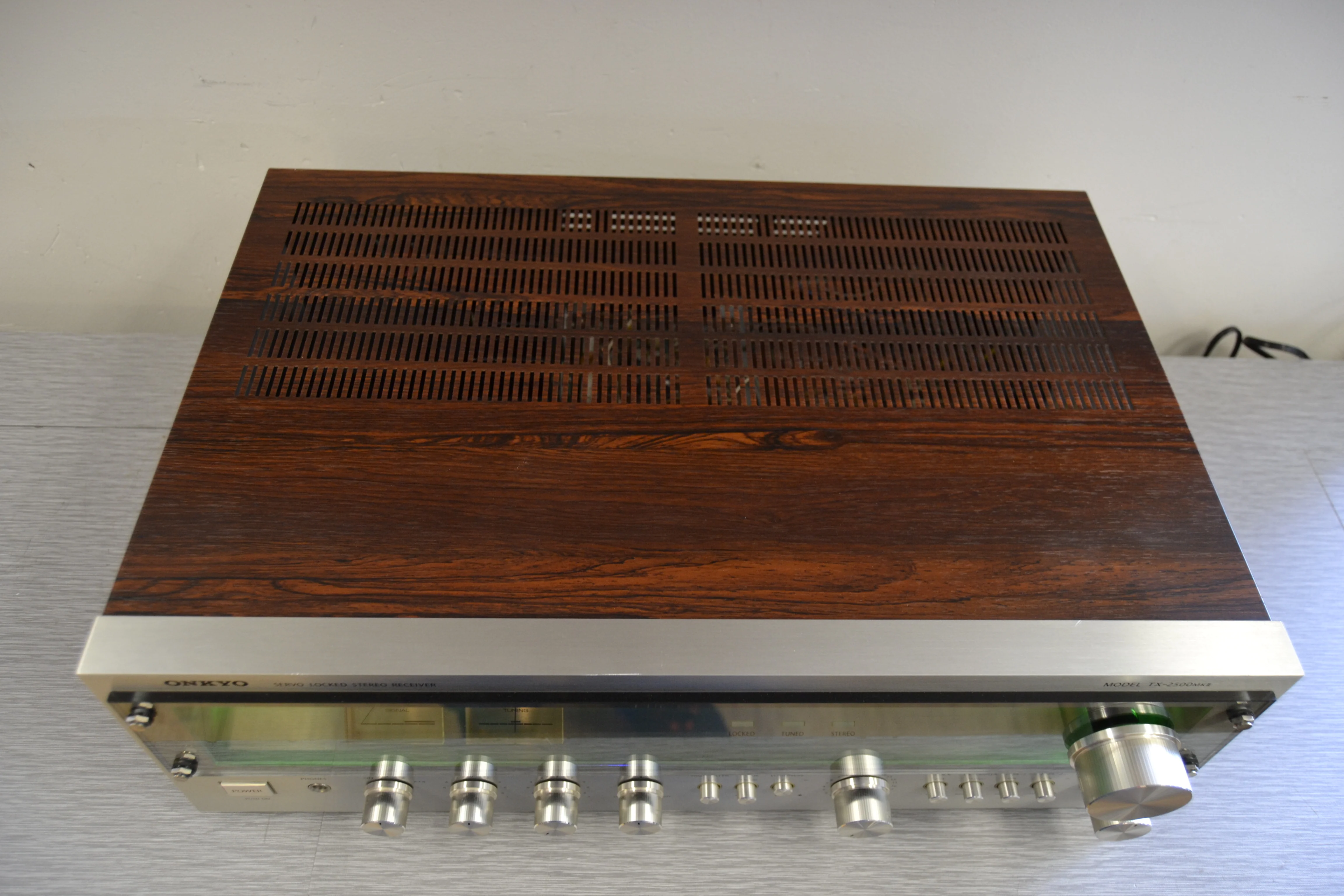

Onkyo TX-2500 MKII Stereo Receiver * 40W RMS * 1979
Onkyo TX-2500 MKII
Servo Locked Stereo Receiver (1979-80)
Specifications
-
Tuning range: FM, MW
Power output: 40 watts per channel into 8Ω (stereo)
Frequency response: 20Hz to 30kHz
Total harmonic distortion: 0.1%
Damping factor: 40
Input sensitivity: 2.5mV (MM), 150mV (line)
Signal to noise ratio: 65dB (MM), 90dB (line)
Output: 150mV (line)
Semiconductors: 1 x FET, 30 x transistors, 8 x IC, 28 x diodes
Dimensions: 483 x 160 x 371mm
Weight: 11.5kg
