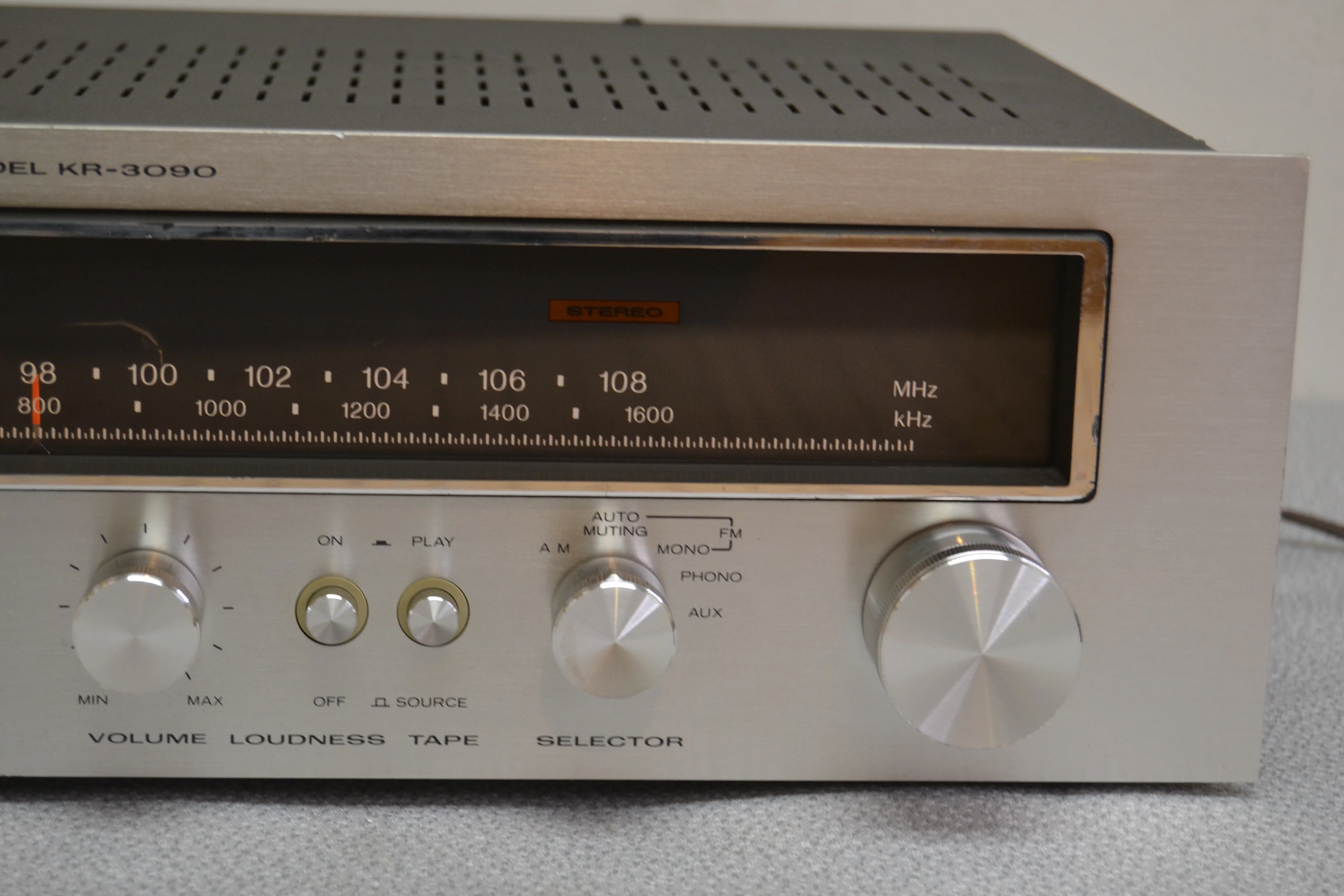

Kenwood KR-3090

AM/FM Stereo Receiver (1978-80)

Specifications

Tuning range: FM, MW

Power output: 26 watts per channel into 8Ω (stereo)

Frequency response: 20Hz to 50kHz

Total harmonic distortion: 0.1%

Damping factor: 40

Input sensitivity: 2.5mV (MM), 150mV (DIN), 150mV (line)

Signal to noise ratio: 77dB (MM), 100dB (DIN), 100dB (line)

Output: 150mV (line), 30mV (DIN)

Speaker load impedance: 4Ω to 16Ω

Dimensions: 468 x 140 x 348mm

Weight: 7.5kg

Year: 1978
