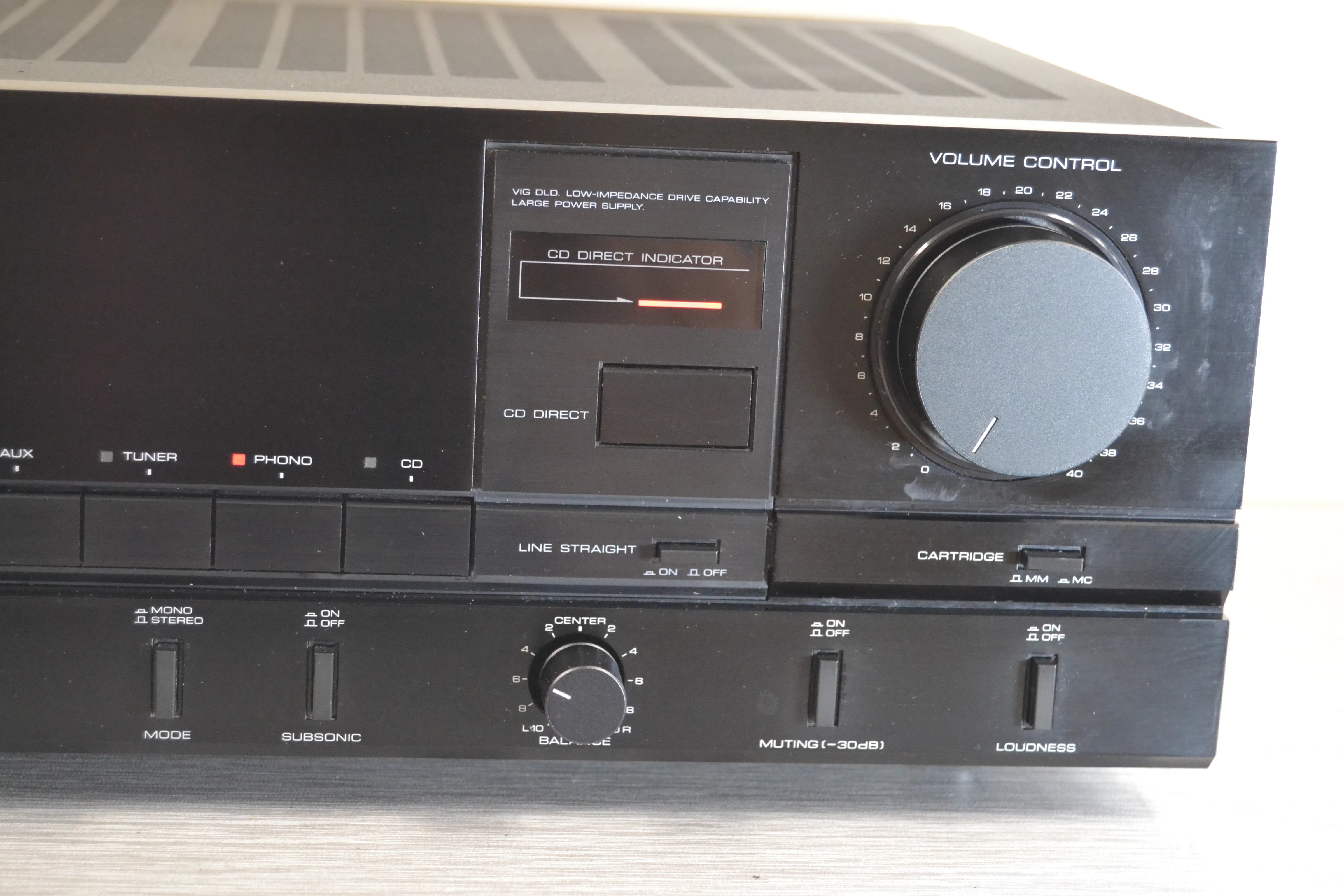

Kenwood KA-880D Stereo Integrated Amplifier * 100W RMS * (1987-89)
Kenwood KA-880D
Stereo Integrated Amplifier (1987-89)
Specifications
Power output: 100 watts per channel into 8⊠(stereo)
Frequency response: 5Hz to 100kHz
Total harmonic distortion: 0.008%
Damping factor: 1000
Input sensitivity: 0.2mV (MC), 2.5mV (MM), 150mV (line)
Signal to noise ratio: 67dB (MC), 86dB (MM), 108dB (line)
Channel separation: 67dB (MM), 56dB (line)
Output: 150mV (line)
Speaker load impedance: 4⊠(minimum)
Dimensions: 440 x 144 x 343mm
Weight: 10kg
Year: 1987
Kenwood KA-880D
Stereo Integrated Amplifier (1987-89)
Specifications
Power output: 100 watts per channel into 8⊠(stereo)
Frequency response: 5Hz to 100kHz
Total harmonic distortion: 0.008%
Damping factor: 1000
Input sensitivity: 0.2mV (MC), 2.5mV (MM), 150mV (line)
Signal to noise ratio: 67dB (MC), 86dB (MM), 108dB (line)
Channel separation: 67dB (MM), 56dB (line)
Output: 150mV (line)
Speaker load impedance: 4⊠(minimum)
Dimensions: 440 x 144 x 343mm
Weight: 10kg
Year: 1987
Description
Kenwood KA-880D
Stereo Integrated Amplifier (1987-89)
Specifications
Power output: 100 watts per channel into 8⊠(stereo)
Frequency response: 5Hz to 100kHz
Total harmonic distortion: 0.008%
Damping factor: 1000
Input sensitivity: 0.2mV (MC), 2.5mV (MM), 150mV (line)
Signal to noise ratio: 67dB (MC), 86dB (MM), 108dB (line)
Channel separation: 67dB (MM), 56dB (line)
Output: 150mV (line)
Speaker load impedance: 4⊠(minimum)
Dimensions: 440 x 144 x 343mm
Weight: 10kg
Year: 1987
