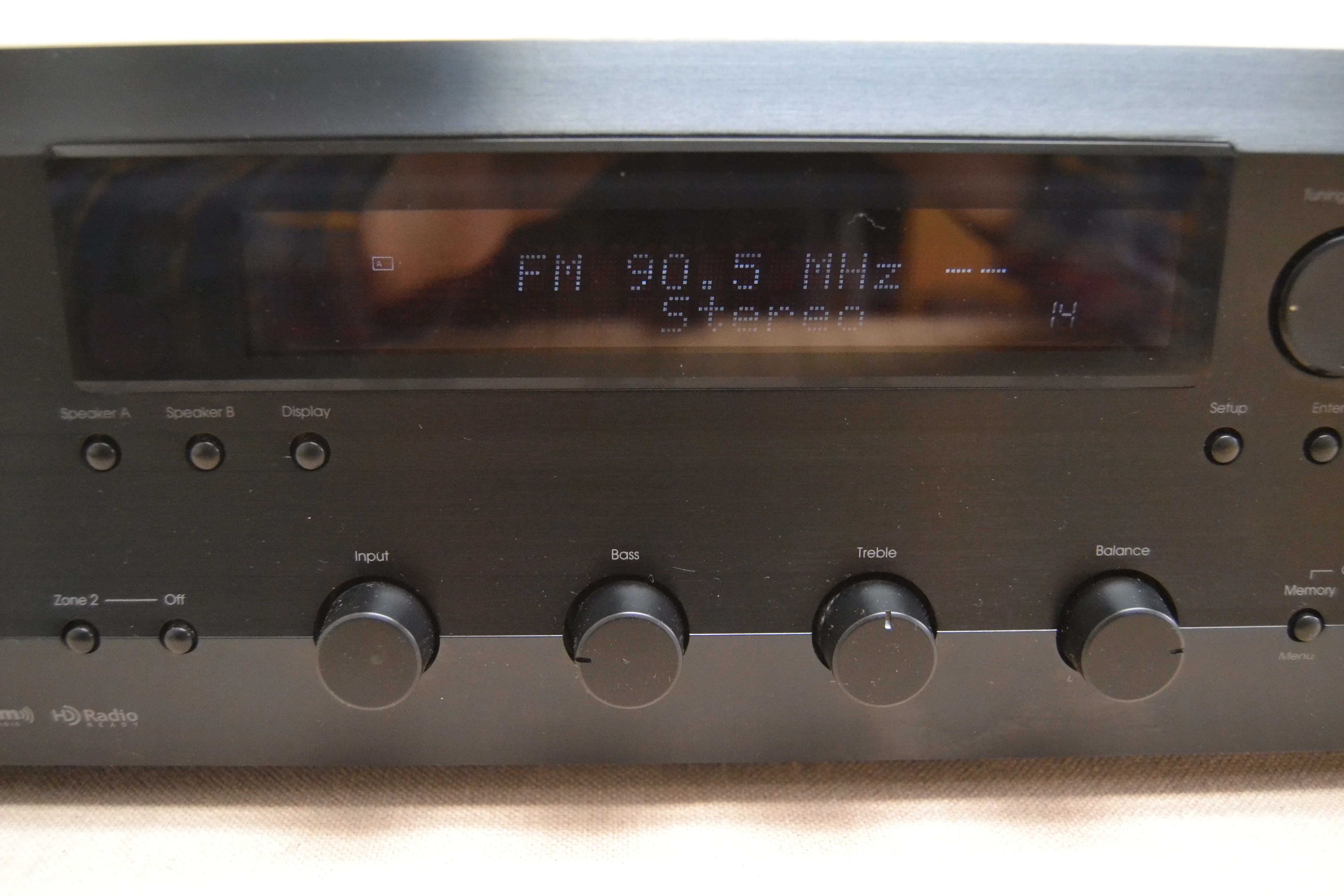

Integra ( Onkyo ) DTM-40.4 Stereo Receiver * Remote * 80W RMS
Specifications Amplifier Section Video Section Tuner Section ■ FM ■ AM General ■ Video Inputs ■ Video Outputs ■ Audio Inputs ■ Audio Outputs ■ Others Specifications and features are subject to change without notice. Rated Output Power (North American) 80 watts minimum continuous power per channel, 8 Ω loads, 2 channels driven from 20 Hz to 20 kHz with a maximum total harmonic distortion of 0.08 % (FTC) 100 watts minimum continuous power per channel, 6 Ω loads, 2 channels driven at 1 kHz with a maximum total harmonic distortion of 0.1 % (FTC) (Oceanian) 2 ch × 130 W at 6 Ω, 1 kHz, 1 ch driven of 1 % (IEC) Dynamic Power 180 W (3 Ω, Front) 160 W (4 Ω, Front) 100 W (8 Ω, Front) THD +N (Total Harmonic Distortion +Noise) 0.08 % (20 Hz–20 kHz, half power) Damping Factor 60 (1 kHz, 8 Ω) Input Sensitivity and Impedance 200 mV/ 47 kΩ (LINE) 2.5 mV/ 47 kΩ (PHONO MM) Rated RCA Output Level and Impedance 200 mV/ 2.2 kΩ (REC OUT) Maximum RCA Output Level and Impedance 2 V/ 2.2 kΩ (REC OUT) Phono Overload 60 mV (MM, 1 kHz, 0.5 %) Frequency Response 5 Hz–100 kHz/ +1 dB–3 dB Tone Control Characteristics ±10 dB, 50 Hz (BASS) ±10 dB, 20 kHz (TREBLE) Signal to Noise Ratio 106 dB (LINE, IHF-A) 80 dB (PHONO MM, IHF-A) Speaker Impedance 4 Ω–16 Ω Input Sensitivity/Output Level and Impedance 1 Vp-p /75 Ω (Composite) Tuning Frequency Range (North American) 87.5 MHz– 107.9 MHz (Oceanian) 87.5 MHz– 108.0 MHz RDS Tuning Frequency Range (North American) 530 kHz–1710 kHz (Oceanian) 522/530 kHz–1611/1710 kHz Preset Channel 40 Power Supply (North American) AC 120 V, 60 Hz (Oceanian) AC 220–240 V, 50/60 Hz Power Consumption (North American) 3.1 A (Oceanian) 295 W No-sound Power Consumption (North American) 55 W (Oceanian) 45 W Stand-by Power Consumption (North American) 0.2 W (Oceanian) 0.3 W Dimensions (W x H x D) 435 × 149.5 × 328 mm (17-1/8" × 5-7/8" × 12-15/16") Weight (North American) 8.7 kg (19.2 lbs.) (Oceanian) 9.0 kg (19.8 lbs) Composite BD/DVD, VCR/DVR, CBL/SAT, GAME Composite MONITOR OUT, VCR/DVR ZONE 2 OUT V Digital Inputs Optical: 2 Coaxial: 2 Analog Inputs PHONO, CD, TV/TAPE, GAME, CBL/SAT, BD/DVD, VCR/DVR Analog Outputs TV/TAPE, VCR/DVR Pre Outputs L/R, SUBWOOFER, ZONE 2 L/R, SUBWOOFER Speaker Outputs SPEAKERS A SPEAKERS B Phones 1 (6.3 ø) Ethernet 1
Specifications Amplifier Section Video Section Tuner Section ■ FM ■ AM General ■ Video Inputs ■ Video Outputs ■ Audio Inputs ■ Audio Outputs ■ Others Specifications and features are subject to change without notice. Rated Output Power (North American) 80 watts minimum continuous power per channel, 8 Ω loads, 2 channels driven from 20 Hz to 20 kHz with a maximum total harmonic distortion of 0.08 % (FTC) 100 watts minimum continuous power per channel, 6 Ω loads, 2 channels driven at 1 kHz with a maximum total harmonic distortion of 0.1 % (FTC) (Oceanian) 2 ch × 130 W at 6 Ω, 1 kHz, 1 ch driven of 1 % (IEC) Dynamic Power 180 W (3 Ω, Front) 160 W (4 Ω, Front) 100 W (8 Ω, Front) THD +N (Total Harmonic Distortion +Noise) 0.08 % (20 Hz–20 kHz, half power) Damping Factor 60 (1 kHz, 8 Ω) Input Sensitivity and Impedance 200 mV/ 47 kΩ (LINE) 2.5 mV/ 47 kΩ (PHONO MM) Rated RCA Output Level and Impedance 200 mV/ 2.2 kΩ (REC OUT) Maximum RCA Output Level and Impedance 2 V/ 2.2 kΩ (REC OUT) Phono Overload 60 mV (MM, 1 kHz, 0.5 %) Frequency Response 5 Hz–100 kHz/ +1 dB–3 dB Tone Control Characteristics ±10 dB, 50 Hz (BASS) ±10 dB, 20 kHz (TREBLE) Signal to Noise Ratio 106 dB (LINE, IHF-A) 80 dB (PHONO MM, IHF-A) Speaker Impedance 4 Ω–16 Ω Input Sensitivity/Output Level and Impedance 1 Vp-p /75 Ω (Composite) Tuning Frequency Range (North American) 87.5 MHz– 107.9 MHz (Oceanian) 87.5 MHz– 108.0 MHz RDS Tuning Frequency Range (North American) 530 kHz–1710 kHz (Oceanian) 522/530 kHz–1611/1710 kHz Preset Channel 40 Power Supply (North American) AC 120 V, 60 Hz (Oceanian) AC 220–240 V, 50/60 Hz Power Consumption (North American) 3.1 A (Oceanian) 295 W No-sound Power Consumption (North American) 55 W (Oceanian) 45 W Stand-by Power Consumption (North American) 0.2 W (Oceanian) 0.3 W Dimensions (W x H x D) 435 × 149.5 × 328 mm (17-1/8" × 5-7/8" × 12-15/16") Weight (North American) 8.7 kg (19.2 lbs.) (Oceanian) 9.0 kg (19.8 lbs) Composite BD/DVD, VCR/DVR, CBL/SAT, GAME Composite MONITOR OUT, VCR/DVR ZONE 2 OUT V Digital Inputs Optical: 2 Coaxial: 2 Analog Inputs PHONO, CD, TV/TAPE, GAME, CBL/SAT, BD/DVD, VCR/DVR Analog Outputs TV/TAPE, VCR/DVR Pre Outputs L/R, SUBWOOFER, ZONE 2 L/R, SUBWOOFER Speaker Outputs SPEAKERS A SPEAKERS B Phones 1 (6.3 ø) Ethernet 1
Description
Specifications Amplifier Section Video Section Tuner Section ■ FM ■ AM General ■ Video Inputs ■ Video Outputs ■ Audio Inputs ■ Audio Outputs ■ Others Specifications and features are subject to change without notice. Rated Output Power (North American) 80 watts minimum continuous power per channel, 8 Ω loads, 2 channels driven from 20 Hz to 20 kHz with a maximum total harmonic distortion of 0.08 % (FTC) 100 watts minimum continuous power per channel, 6 Ω loads, 2 channels driven at 1 kHz with a maximum total harmonic distortion of 0.1 % (FTC) (Oceanian) 2 ch × 130 W at 6 Ω, 1 kHz, 1 ch driven of 1 % (IEC) Dynamic Power 180 W (3 Ω, Front) 160 W (4 Ω, Front) 100 W (8 Ω, Front) THD +N (Total Harmonic Distortion +Noise) 0.08 % (20 Hz–20 kHz, half power) Damping Factor 60 (1 kHz, 8 Ω) Input Sensitivity and Impedance 200 mV/ 47 kΩ (LINE) 2.5 mV/ 47 kΩ (PHONO MM) Rated RCA Output Level and Impedance 200 mV/ 2.2 kΩ (REC OUT) Maximum RCA Output Level and Impedance 2 V/ 2.2 kΩ (REC OUT) Phono Overload 60 mV (MM, 1 kHz, 0.5 %) Frequency Response 5 Hz–100 kHz/ +1 dB–3 dB Tone Control Characteristics ±10 dB, 50 Hz (BASS) ±10 dB, 20 kHz (TREBLE) Signal to Noise Ratio 106 dB (LINE, IHF-A) 80 dB (PHONO MM, IHF-A) Speaker Impedance 4 Ω–16 Ω Input Sensitivity/Output Level and Impedance 1 Vp-p /75 Ω (Composite) Tuning Frequency Range (North American) 87.5 MHz– 107.9 MHz (Oceanian) 87.5 MHz– 108.0 MHz RDS Tuning Frequency Range (North American) 530 kHz–1710 kHz (Oceanian) 522/530 kHz–1611/1710 kHz Preset Channel 40 Power Supply (North American) AC 120 V, 60 Hz (Oceanian) AC 220–240 V, 50/60 Hz Power Consumption (North American) 3.1 A (Oceanian) 295 W No-sound Power Consumption (North American) 55 W (Oceanian) 45 W Stand-by Power Consumption (North American) 0.2 W (Oceanian) 0.3 W Dimensions (W x H x D) 435 × 149.5 × 328 mm (17-1/8" × 5-7/8" × 12-15/16") Weight (North American) 8.7 kg (19.2 lbs.) (Oceanian) 9.0 kg (19.8 lbs) Composite BD/DVD, VCR/DVR, CBL/SAT, GAME Composite MONITOR OUT, VCR/DVR ZONE 2 OUT V Digital Inputs Optical: 2 Coaxial: 2 Analog Inputs PHONO, CD, TV/TAPE, GAME, CBL/SAT, BD/DVD, VCR/DVR Analog Outputs TV/TAPE, VCR/DVR Pre Outputs L/R, SUBWOOFER, ZONE 2 L/R, SUBWOOFER Speaker Outputs SPEAKERS A SPEAKERS B Phones 1 (6.3 ø) Ethernet 1
