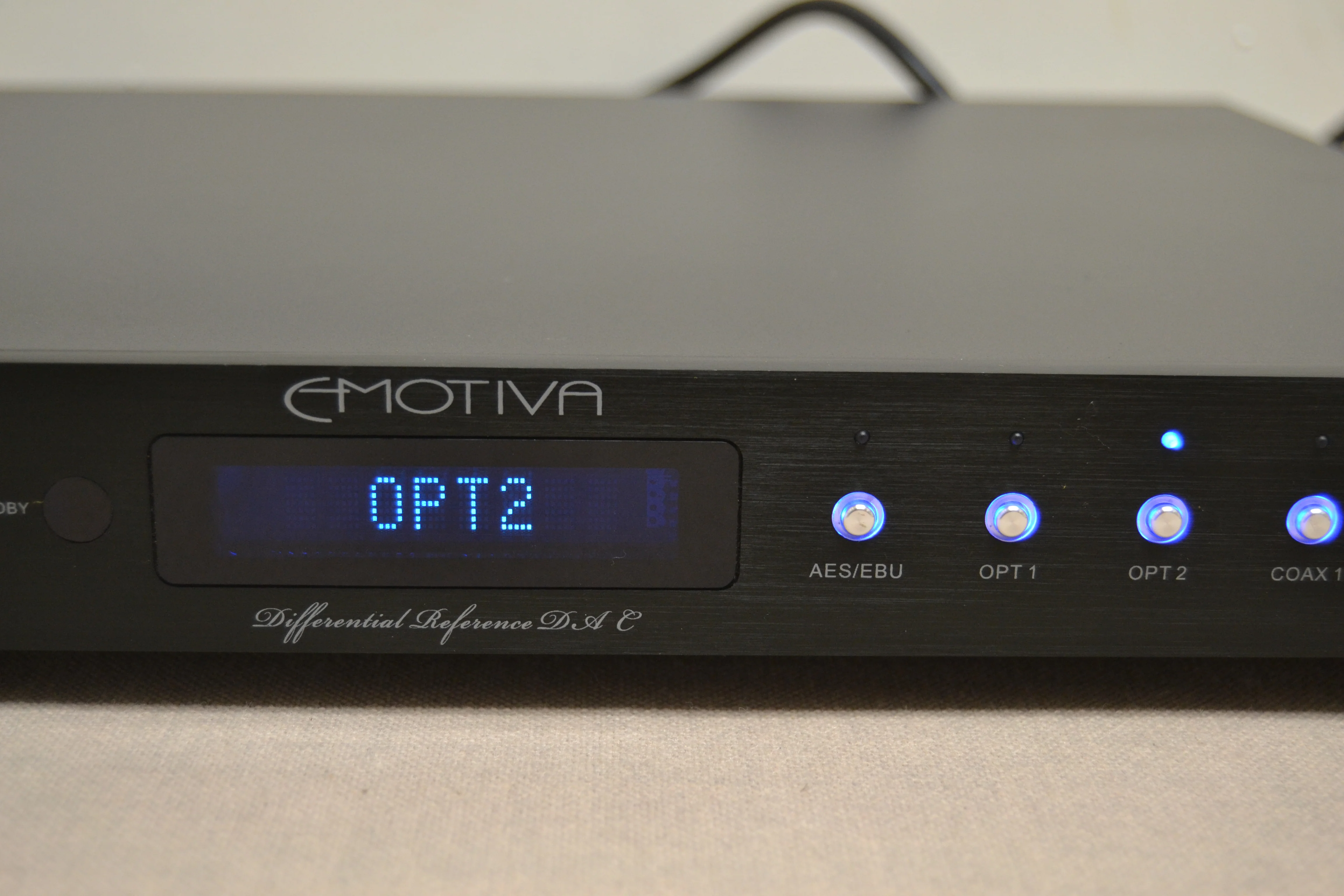

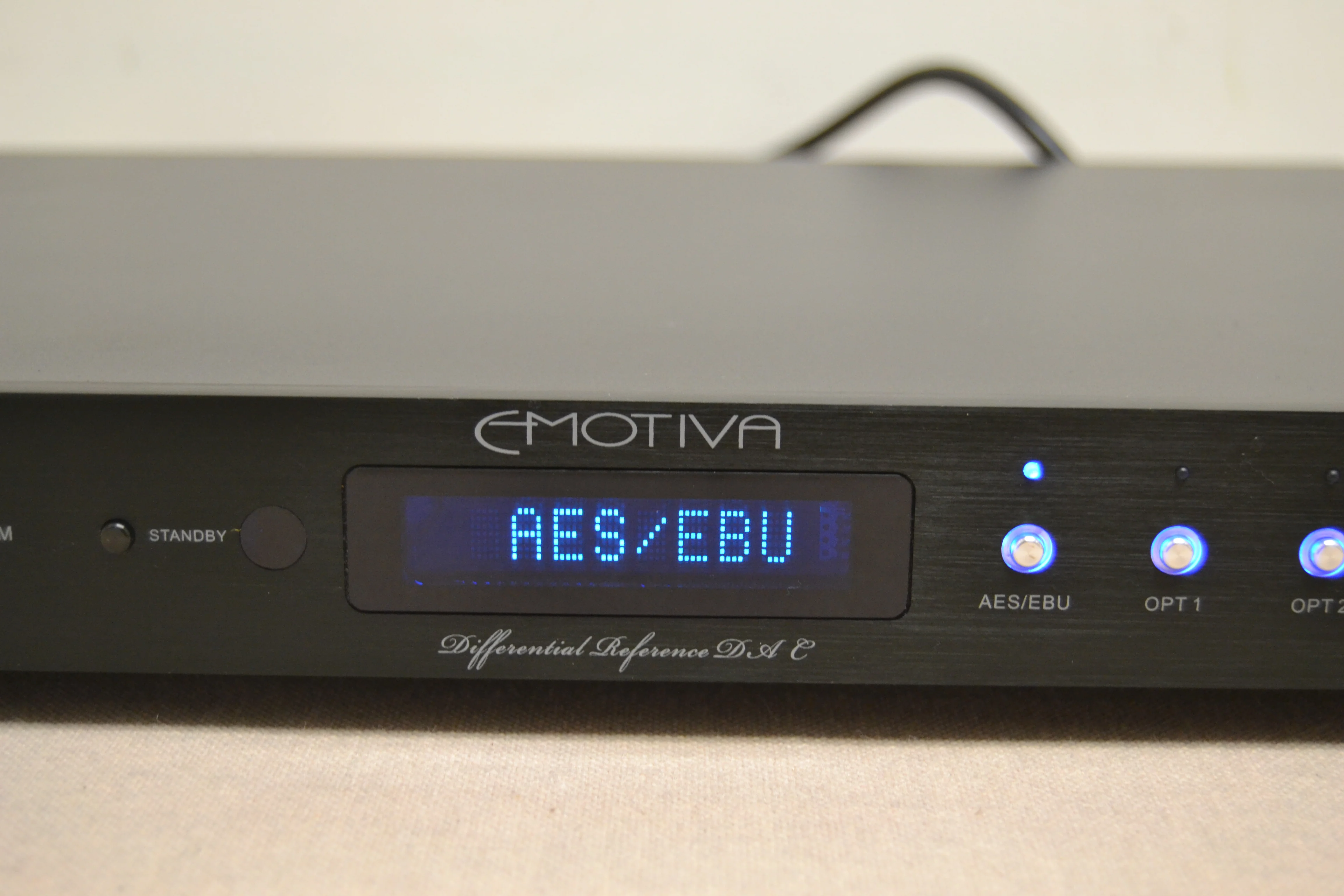

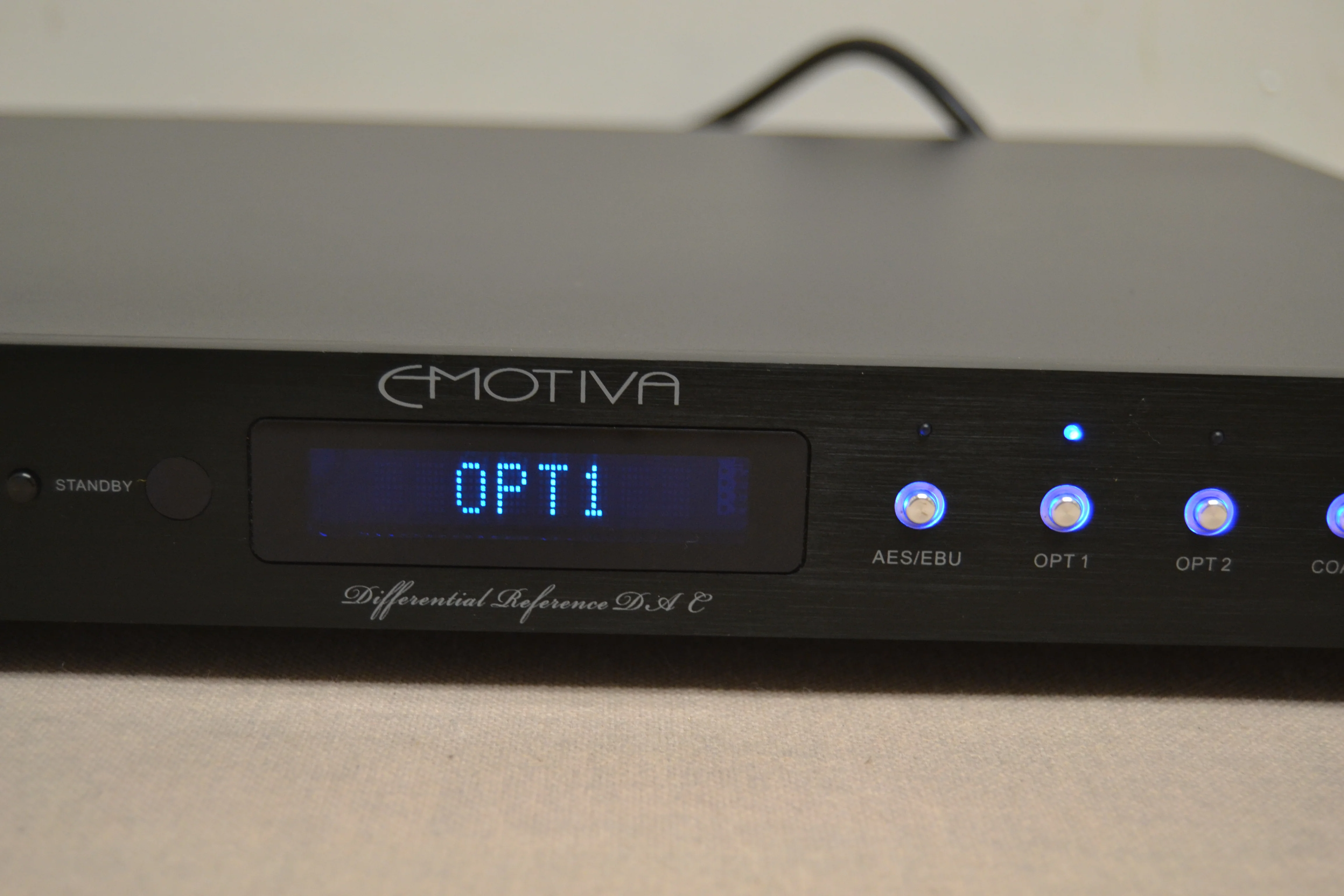

Emotiva XDA-1 Differential Reference DAC
The Emotiva XDA-1 is a solid-state Differential Reference DAC and digital preamplifier featuring the Analog Devices AD1955 chipset, supporting up to 24-bit/192 kHz audio. It offers 6 digital inputs (2x Optical, 2x Coax, 1x AES/EBU, 1x USB), balanced XLR/unbalanced RCA outputs, and 0.5 dB increment volume control.
Key Technical Specifications:
- DAC Chipset: Multibit Sigma-Delta AD1955 (8x Oversampling).
- Maximum Sampling Rate: 24-bit, 192 kHz (USB may be limited to 16/48).
- Frequency Response: 5 Hz – 48 kHz.
- Signal-to-Noise Ratio (S/N): 105dB (A-Weighted).
- Total Harmonic Distortion + Noise (THD+N): 0.001%.
- Maximum Output: 12 Volts RMS (Balanced).
- Dimensions: 17” W x 2.25” H x 13.5” D.
-
Weight: 8.5 lbs.
Key Features:
- Inputs: 2x Toslink Optical, 2x Coaxial, 1x AES/EBU, 1x USB.
- Outputs: Balanced (XLR) and Unbalanced (RCA).
- Control: Includes a milled aluminum remote control.
-
Output Stage: Fully discrete differential.
The unit was designed for high-fidelity audio, utilizing a fully balanced signal path.
The Emotiva XDA-1 is a solid-state Differential Reference DAC and digital preamplifier featuring the Analog Devices AD1955 chipset, supporting up to 24-bit/192 kHz audio. It offers 6 digital inputs (2x Optical, 2x Coax, 1x AES/EBU, 1x USB), balanced XLR/unbalanced RCA outputs, and 0.5 dB increment volume control.
Key Technical Specifications:
- DAC Chipset: Multibit Sigma-Delta AD1955 (8x Oversampling).
- Maximum Sampling Rate: 24-bit, 192 kHz (USB may be limited to 16/48).
- Frequency Response: 5 Hz – 48 kHz.
- Signal-to-Noise Ratio (S/N): 105dB (A-Weighted).
- Total Harmonic Distortion + Noise (THD+N): 0.001%.
- Maximum Output: 12 Volts RMS (Balanced).
- Dimensions: 17” W x 2.25” H x 13.5” D.
-
Weight: 8.5 lbs.
Key Features:
- Inputs: 2x Toslink Optical, 2x Coaxial, 1x AES/EBU, 1x USB.
- Outputs: Balanced (XLR) and Unbalanced (RCA).
- Control: Includes a milled aluminum remote control.
-
Output Stage: Fully discrete differential.
The unit was designed for high-fidelity audio, utilizing a fully balanced signal path.
$150.00
Emotiva XDA-1 Differential Reference DAC—
$150.00
Description
The Emotiva XDA-1 is a solid-state Differential Reference DAC and digital preamplifier featuring the Analog Devices AD1955 chipset, supporting up to 24-bit/192 kHz audio. It offers 6 digital inputs (2x Optical, 2x Coax, 1x AES/EBU, 1x USB), balanced XLR/unbalanced RCA outputs, and 0.5 dB increment volume control.
Key Technical Specifications:
- DAC Chipset: Multibit Sigma-Delta AD1955 (8x Oversampling).
- Maximum Sampling Rate: 24-bit, 192 kHz (USB may be limited to 16/48).
- Frequency Response: 5 Hz – 48 kHz.
- Signal-to-Noise Ratio (S/N): 105dB (A-Weighted).
- Total Harmonic Distortion + Noise (THD+N): 0.001%.
- Maximum Output: 12 Volts RMS (Balanced).
- Dimensions: 17” W x 2.25” H x 13.5” D.
-
Weight: 8.5 lbs.
Key Features:
- Inputs: 2x Toslink Optical, 2x Coaxial, 1x AES/EBU, 1x USB.
- Outputs: Balanced (XLR) and Unbalanced (RCA).
- Control: Includes a milled aluminum remote control.
-
Output Stage: Fully discrete differential.
The unit was designed for high-fidelity audio, utilizing a fully balanced signal path.
