Emotiva UPA-200 Power Amplifier
EMOTIVA UPA-200 POWER AMPLIFIER
Topology: Fully discrete, dual differential, high current, short signal path Class A/B.
Number of Channels: 2
Power Output
(rated power; THD 0.05%):
125 watts / channel (8 ohms; all channels driven).
200 watts / channel (4 ohms; all channels driven).
Rated Power Bandwidth (at rated power; 8 Ohm load): 10 Hz to 20 kHz + / - 0.1 dB.
Minimum Recommended Load Impedance: 4 ohms (which equals one 4 ohm load or two paralleled 8 ohm loads per channel).
Frequency Response: 5 Hz to 80 kHz + 0 / - 2 dB.
THD + N: < 0.03%
Signal to Noise Ratio (8 Ohm load):
92 dB at 1 watt (A-weighted).
106 dB at rated power (A-weighted).
Damping Factor (8 Ohm load): 500
Speaker Output Connections:
Full-sized 5-way binding posts; one pair per channel x 2.
Power Supply:
350 VA high current ultra-low noise toroidal power transformer.
40,000 uF of storage capacitance.
Input sensitivity (for rated power; 8 Ohm load): 1.1 V (for full output; 8 ohms).
Gain: 29 dB
Input Connections:
Unbalanced (RCA); one per channel.
Input Impedance: 47 kOhms

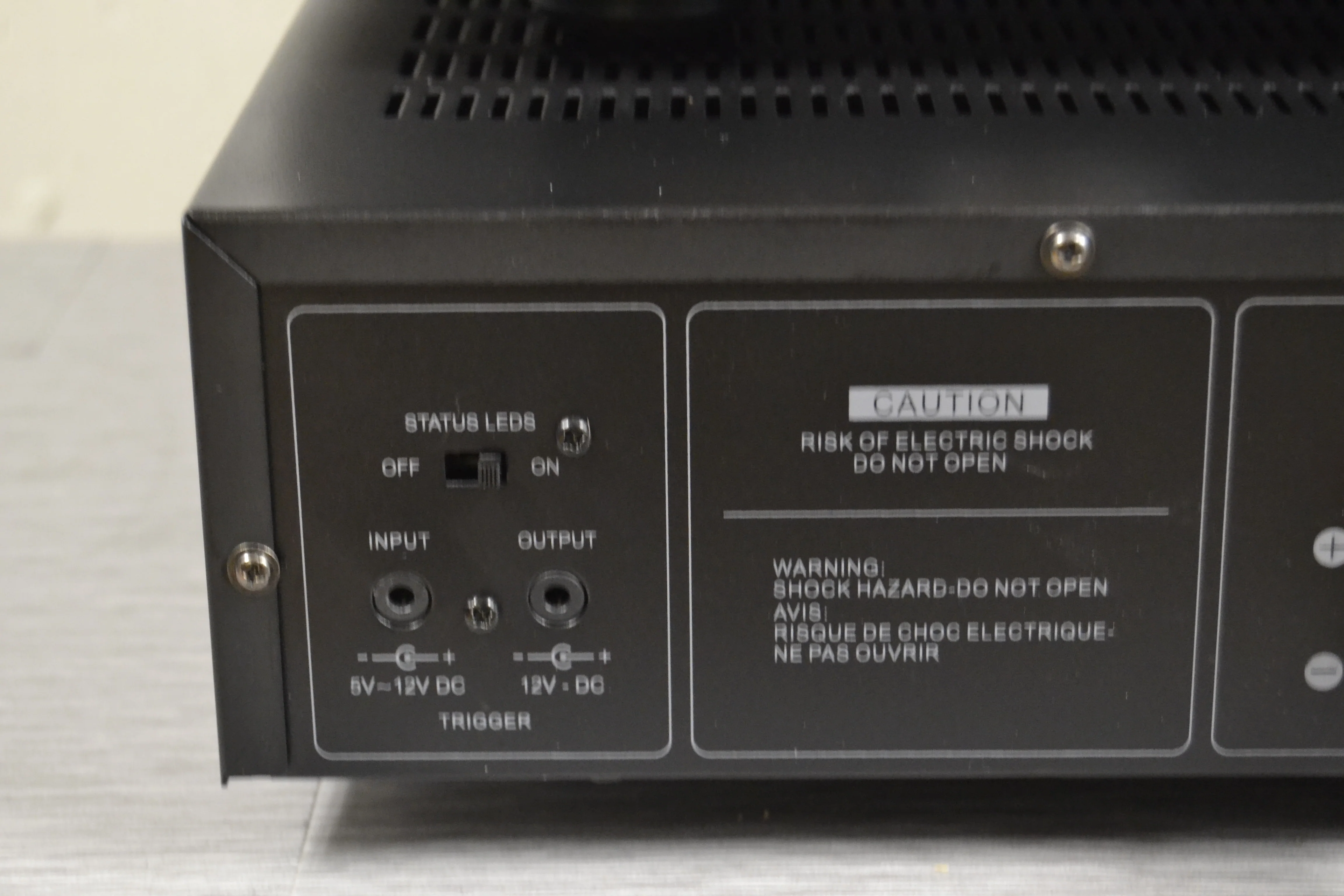

Trigger:
Trigger Input: 5 - 20 V (AC or DC); < 10 mA input current required.
Trigger Output: 12 VDC; can drive any load up to 50 mA.
Power Requirements: 115 VAC or 230 VAC +/- 10% @ 50 / 60 Hz (automatically detected and switched).
Front Panel Controls and Indicators:
Standby; push button (changes color to indicate Standby or On).
Status LEDs (one per channel); illuminate blue for normal operation or red to indicate a fault (may be disabled by rear panel Status LED switch).
Rear Panel Controls:
AC Power switch; rocker switch (switches AC mains power).
Status LEDs switch; small slide switch on left rear (disables front panel Status LEDs).
Protection: The UPA-200 is protected against excessive operating temperature, shorted speaker connections, ground faults, and other common fault conditions. If a fault occurs, the UPA-200 will return to Standby mode, the Standby push button will light amber, and the Status LEDs will flash red.
Size:
unboxed: 17" wide x 3.375" high x 16.5" deep
Weight: 24 lbs (net); 32 lbs (boxed)
