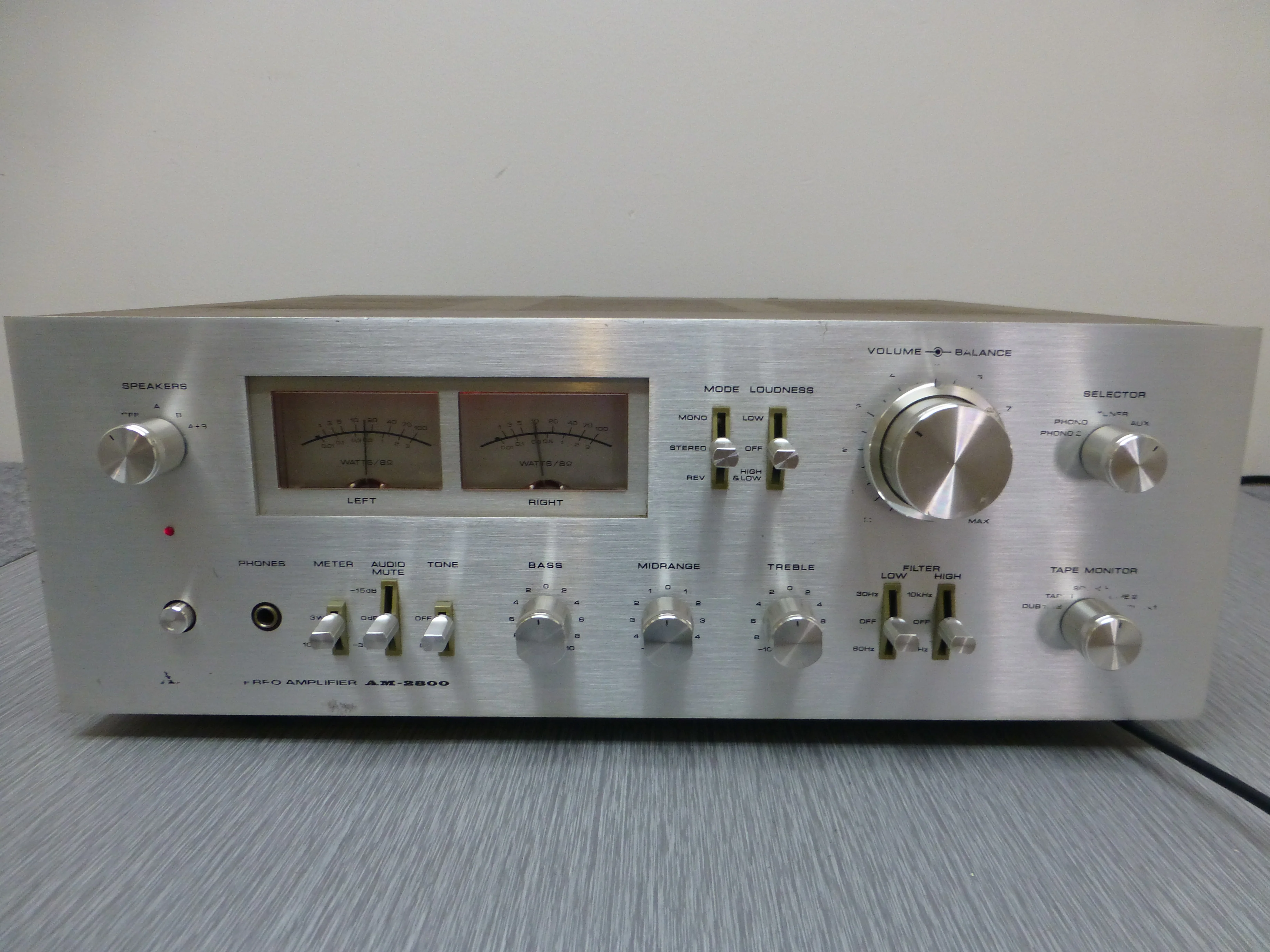

Akai AM-2800 Stereo Integrated Amplifier (1976-79) * 80W RMS
Akai AM-2800
Stereo Integrated Amplifier (1976-79)
Specifications
Power output: 80 watts per channel into 8ā¦ (stereo)
Frequency response: 20Hz to 20kHz
Total harmonic distortion: 0.08%
Damping factor: 60
Input sensitivity: 3mV (MM), 150mV (DIN), 150mV (line)
Signal to noise ratio: 75dB (MM), 95dB (line)
Channel separation: 55dB (MM)
Output: 150mV (line), 30mV (DIN)
Speaker load impedance: 4ā¦ to 16ā¦
Semiconductors: 37 x transistors, 17 x diodes
Dimensions: 440 x 165 x 396mm
Weight: 12.9kg
Akai AM-2800
Stereo Integrated Amplifier (1976-79)
Specifications
Power output: 80 watts per channel into 8ā¦ (stereo)
Frequency response: 20Hz to 20kHz
Total harmonic distortion: 0.08%
Damping factor: 60
Input sensitivity: 3mV (MM), 150mV (DIN), 150mV (line)
Signal to noise ratio: 75dB (MM), 95dB (line)
Channel separation: 55dB (MM)
Output: 150mV (line), 30mV (DIN)
Speaker load impedance: 4ā¦ to 16ā¦
Semiconductors: 37 x transistors, 17 x diodes
Dimensions: 440 x 165 x 396mm
Weight: 12.9kg
Description
Akai AM-2800
Stereo Integrated Amplifier (1976-79)
Specifications
Power output: 80 watts per channel into 8ā¦ (stereo)
Frequency response: 20Hz to 20kHz
Total harmonic distortion: 0.08%
Damping factor: 60
Input sensitivity: 3mV (MM), 150mV (DIN), 150mV (line)
Signal to noise ratio: 75dB (MM), 95dB (line)
Channel separation: 55dB (MM)
Output: 150mV (line), 30mV (DIN)
Speaker load impedance: 4ā¦ to 16ā¦
Semiconductors: 37 x transistors, 17 x diodes
Dimensions: 440 x 165 x 396mm
Weight: 12.9kg
